Product Overview

Our patented Retumable Plastic Multistage Pallet and Containers (MSC) can enhance your competitiveness in export and logistics, Saving natural resources, we fullfill your custormer's needs with a new packing method.
MSC provides a sound long-time solution through effective control and reduction of raw material costs in an unpredictable business environment.

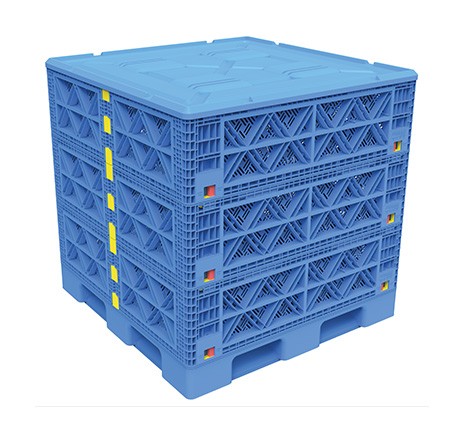

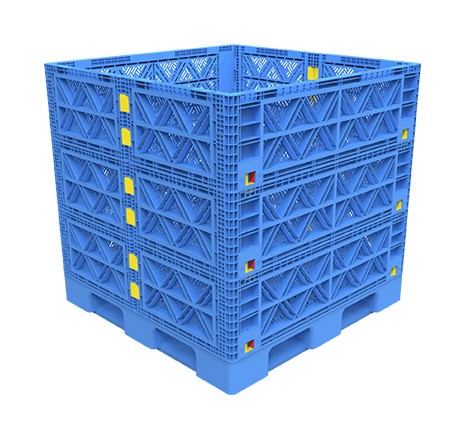

MSC MESH

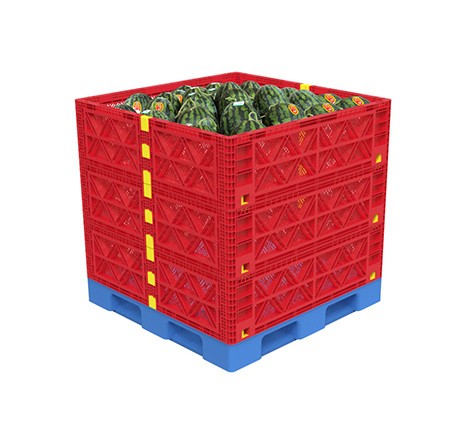

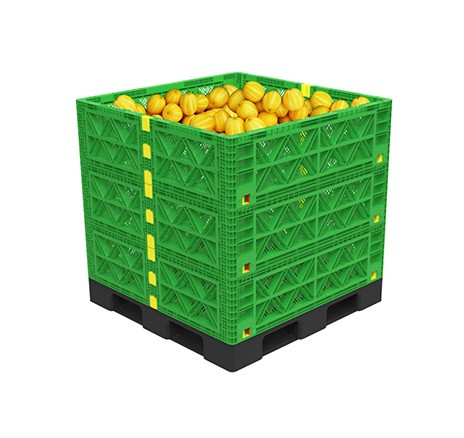

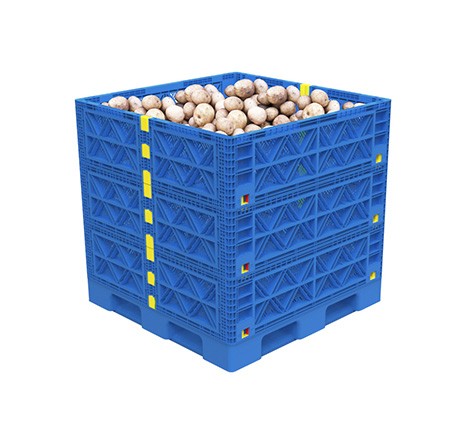

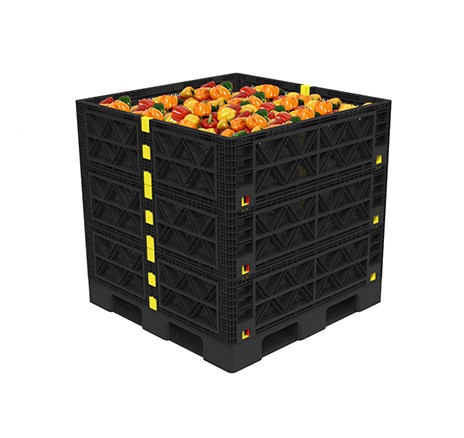

MSC can efficiently be used to pack agricultural, marine products in export, keep their freshness, enhance product image with many advantages in logistics.

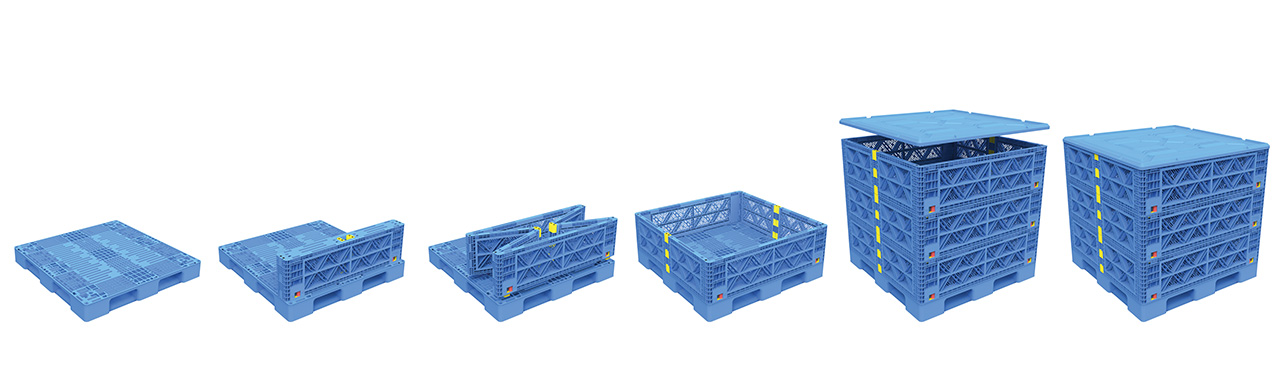

ASSEMBLY DIAGRAM

MSC MESH ASSEMBLY Diagram

SPECIFICATION

You can check by scrolling left / right.

MSC-M1111

PART NAME	MATERIAL	Q'TY(EA)	WEIGHT(KG) PART	WEIGHT(KG) 1 LAYER	WEIGHT(KG) 1 SET
PALLET	PP(NO BREAK)	1	23	23	1 SET Weight 62.5
FRONT PANEL	HDPE	6	2.89	1 LAYER Weight 13
SIDE PANEL	HDPE	12	1.41
CONNECTOR	PP	18	0.08
BRACKET	ABS	12	0.04
BOLT, NUT	PC, STEEL	24	0.12
CAP	HDPE	1	6.50	6.5	6.5

Container

CONTAINER	Loading Quantitiy for 1 set of MSC	Loading Quantity for MSC Collection	Collection Ratio
20 FT	20 SET	80 SET	1 : 4
40 FT	40 SET	160 SET	1 : 4
40 FT HC	40 SET	180 SET	1: 4.5
45 FT	48 SET	216 SET	1 : 4.5

Panel

CONTAINER OUT SIZE(㎜)		IN SIZE(㎜)		STATIC CAPACITY
1,100 x 1,100 x 310	1 STACK	1,030 x 1,030	320L	1,500KG
1,100 x 1,100 x 620	2 STACK	1,030 x 1,030	650L	1,500KG
1,100 x 1,100 x 930	3 STACK	1,030 x 1,030	980L	1,500KG
1,100 x 1,100 x 1,240	4 STACK	1,030 x 1,030	1,300L	1,500KG
