PRODUCT

Company Consider a Top Priority Customer Value.

Product Overview

Our patented Retumable Plastic Multistage Pallet and Containers (MSC) can enhance your competitiveness in export and logistics, Saving natural resources, we fullfill your custormer's needs with a new packing method.
MSC provides a sound long-time solution through effective control and reduction of raw material costs in an unpredictable business environment.

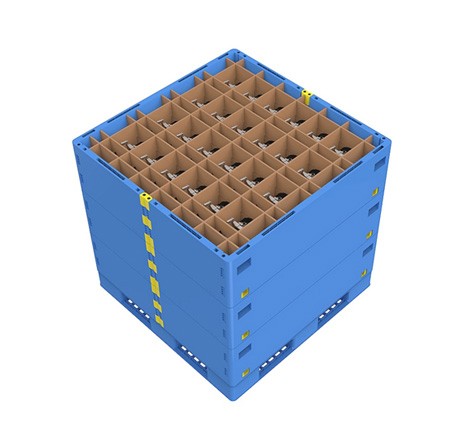

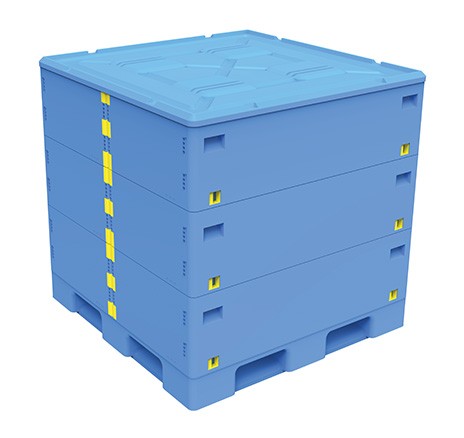

MSC STANDARD

    • MSC can cut back disposable packing costs and reduce environmental problems.
    • Efficiently manage export of automobile parts, products, reduce its logistics costs, packing costs and enhance your competitiveness in export.

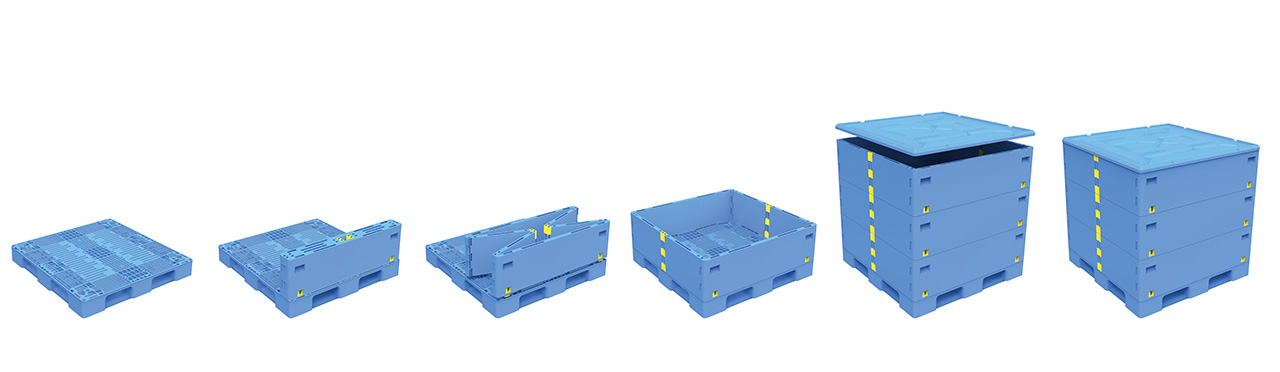

ASSEMBLY DIAGRAM

SPECIFICATION

You can check by scrolling left / right.

MSC-S1111

PART NAME MATERIAL Q'TY(EA) WEIGHT(KG) PART WEIGHT(KG) 1 LAYER WEIGHT(KG) 1 SET
PALLET PP(NO BREAK) 1 23 23 1 SET Weight 59.5
FRONT PANEL PP 6 2.80 1 LAYER Weight 12
SIDE PANEL PP 12 1.26
CONNECTOR PP 18 0.08
BRACKET ABS 12 0.04
BOLT, NUT PC, STEEL 24 0.12
CAP HDPE 1 6.50 6.5 6.5

Container

CONTAINER Loading Quantitiy for 1 set of MSC Loading Quantity for MSC Collection Collection Ratio
20 FT 20 SET 80 SET 1 : 4
40 FT 40 SET 160 SET 1 : 4
40 FT HC 40 SET 160 SET 1: 4.5
45 FT 48 SET 216 SET 1 : 4.5

Panel

CONTAINER OUT SIZE(㎜)   IN SIZE(㎜)   STATIC CAPACITY
1,100 x 1,100 x 310 1 STACK 1,030 x 1,030 320L 1,500KG
1,100 x 1,100 x 620 2 STACK 1,030 x 1,030 650L 1,500KG
1,100 x 1,100 x 930 3 STACK 1,030 x 1,030 980L 1,500KG
1,100 x 1,100 x 1,240 4 STACK 1,030 x 1,030 1,300L 1,500KG

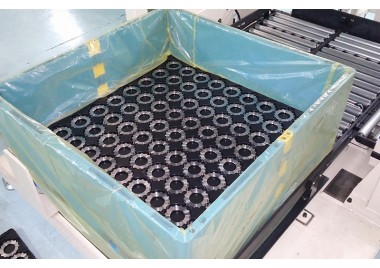

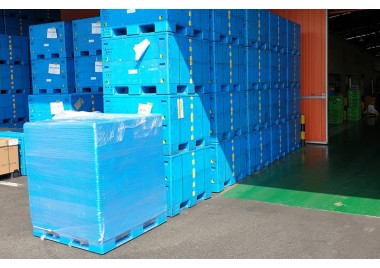

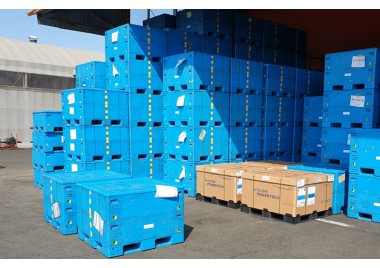

APPLICATION EXAMPLE
